Description

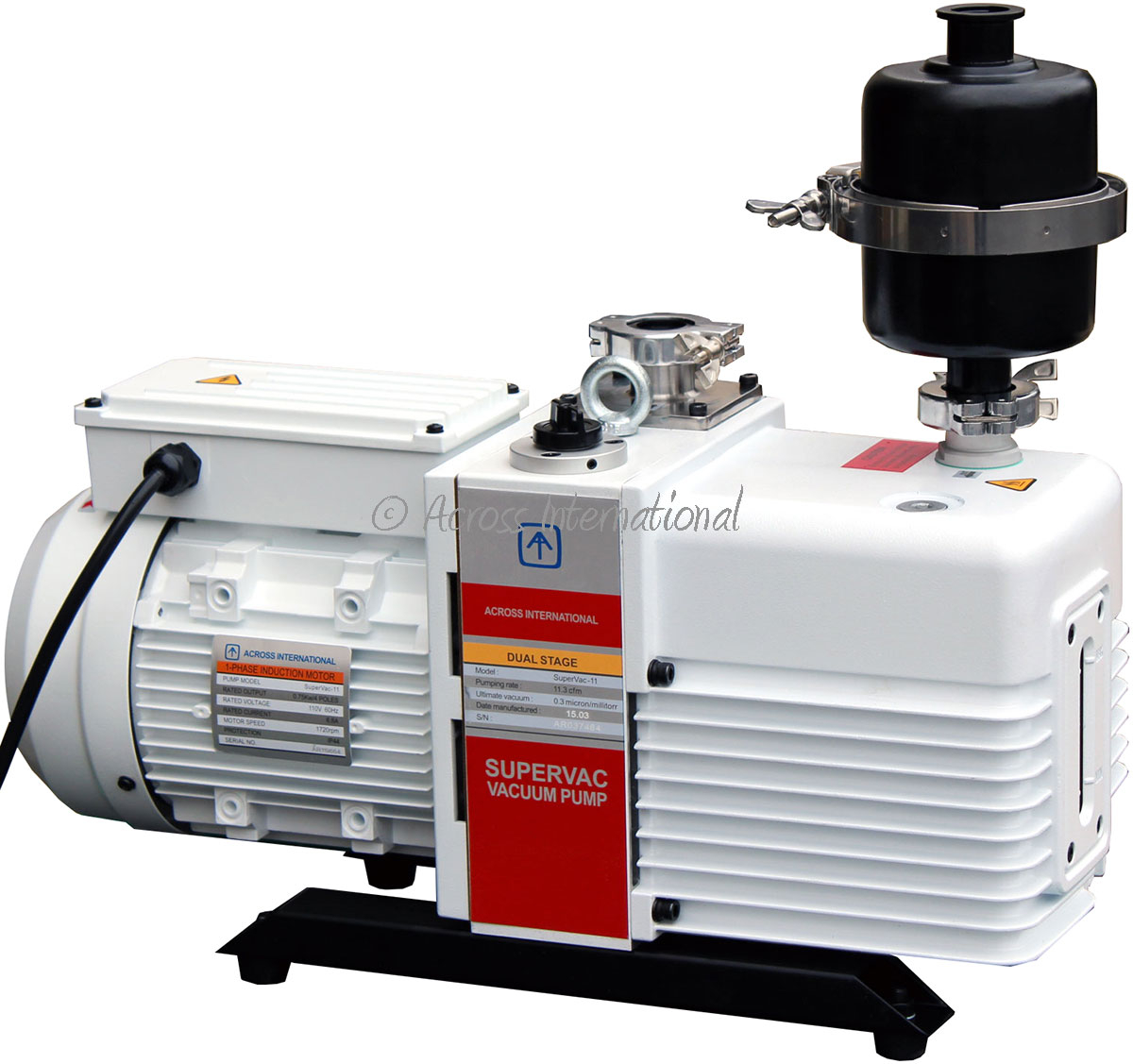

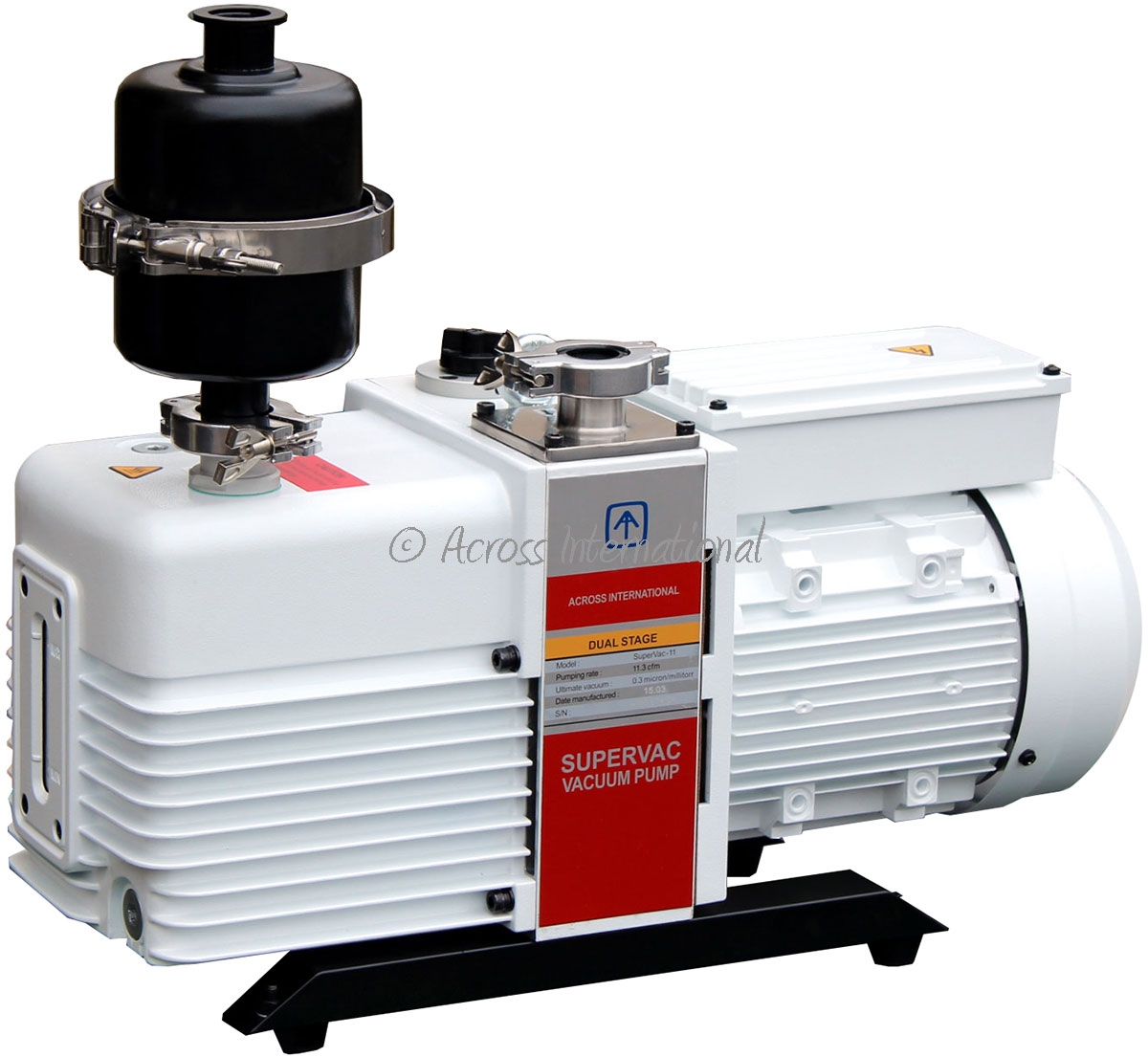

The new Ai SuperVac-11C 11.3 cfm commercial grade heavy duty dual-stage vacuum pump is now corrosion resistant. These pumps are designed for reliable long time continuous operation, they will take your equipment’s vacuum down to 0.3 micron in minutes. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.
Multi-level gas ballast is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast, allowing dry air to go directly into the pump and diluting the vacuum pull, and it also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust.
It is important to note that pumps should always be ran in a well ventilated area.
Free high capacity exhaust oil mist filter ($250 value), KF25 flexible stainless steel bellow (3.3 ft), clamps and centering rings set ($219 value) included.
Features
- New corrosion-resistant design for durable operation in various environment
- Adjustable gas ballast
- Built-in oil back-flow prevention check valve
- Internal forced oil cycling system
- Integrated cylinder structure
- Exhaust filter with easy-to-change replaceable filter element
- Heavy duty structure and designed for reliable long time operation
- Low noise
- All necessary fittings and filter included for immediate use
Specifications
| Electrical requirements |
110v 60Hz single phase, 750 watts |
| Pumping rate |
11.3 cfm |
| Ultimate vacuum without gas ballast |
0.3 micron/millitorr |
| Ultimate vacuum with gas ballast | 6 micron/millitorr |
| Inlet/outlet connection |
KF25/NW25 flange |
| Oil volume | 1.5 liter / 1.59 quart |
| Motor rate | 1720 rpm |
| Working temperature | 5 to 40°C |
| Unit/shipping dimensions (LxWxH) |
21×7.5×12″ / 29.5×9.5×16.5″ |
| Unit/shipping weight |
66 Lb / 75 Lb |
| Recommended oil | Ultra-grade 19 |
| Noise level | < 58 dB |
| CE compliance |
Yes |
Standard package
| Part description | Quantity |
Part image |
| Ai SuperVac 11 cfm vacuum pump with exhaust oil mist filter | 1 set | |
| KF25 flexible stainless steel vacuum bellow (3 ft) | 1 pc |  |
| KF25 wing nut flange quick clamp | 2 pcs |  |
| KF25 flange centering ring | 2 pcs |  |
| User’s manual | 1 pc |  |
