Welch Full Chem-Resistant Diaphragm Pump 6.1 cfm

$4,490.00

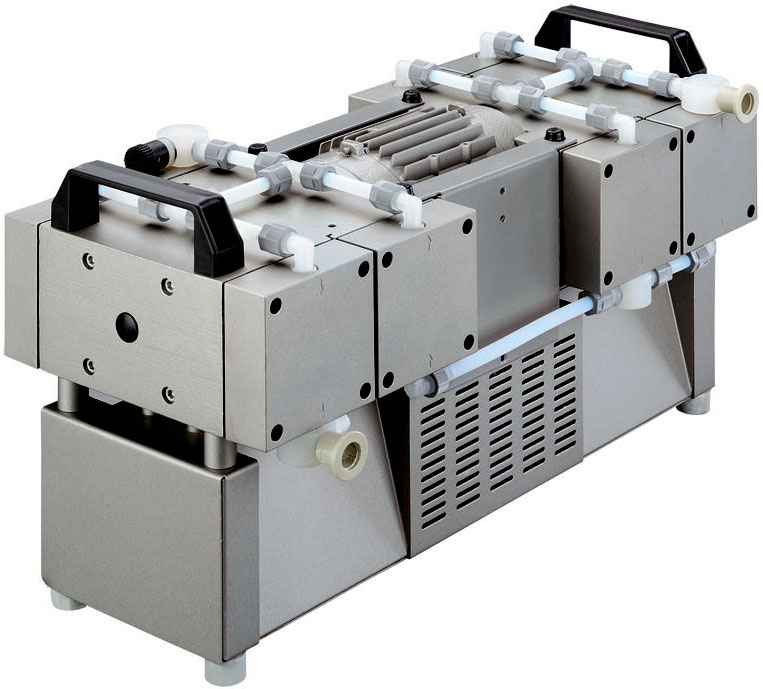

The Welch 2163B-01 is a high capacity full chemical-resistant, 8-head, oil-free dry diaphragm vacuum pump with all-aluminum contact surfaces and deep vacuum capability. Oil-Free, portable, full chemical-resistant, means less maintenance and no more frequent and costly oil change, or cross contamination.

Description

The Welch 2163B-01 is a high capacity full chemical-resistant, 8-head, oil-free dry diaphragm vacuum pump with all-aluminum contact surfaces and deep vacuum capability. Oil-Free, portable, full chemical-resistant, means less maintenance and no more frequent and costly oil change, or cross contamination.

Ai is now the official dealer of Welch vacuum pumps. These pumps are made in Germany with one year warranty and technical support from Welch Vacuum.

Free KF25 flexible stainless steel bellow (3.3 ft), clamps and centering rings set ($219 value) included with the Welch Full Chem-Resistant Diaphragm Pump 6.1 cfm.

High Capacity Diaphragm Pump 2064

  • Facebook
  • Twitter
  • Google+
  • Pinterest

Specifications



 Electrical requirements
 110v 60Hz single phase
 Pumping rate
 6.1 cfm / 174 L/min
 Gasket material  All-PTFE
 Ultimate vacuum level
 6 torr / 8 mbar
 Maximum vacuum  29.9 in. Hg
 Inlet/Outlet  KF16 flange
 Adjustable vac./gas ballast  No
 Unit dimensions  21 x 10 x 12″ (LxWxH)
 Shipping dimensions  28 x 16 x 20″ (LxWxH)
 Shipping weight  90 Lbs

  • Facebook
  • Twitter
  • Google+
  • Pinterest

Standard package

 Part description  Quantity
Part image
 Welch 2163B-01 6.1 cfm 8-head diaphragm pump 1 pc
  • Facebook
  • Twitter
  • Google+
  • Pinterest
 KF25 flexible stainless steel vacuum bellow (3 ft) 1 pc
  • Facebook
  • Twitter
  • Google+
  • Pinterest
 KF25 wing nut flange quick clamp  2 pcs
  • Facebook
  • Twitter
  • Google+
  • Pinterest
 KF25 flange centering ring  2 pcs
  • Facebook
  • Twitter
  • Google+
  • Pinterest
 User’s manual 1 pc
  • Facebook
  • Twitter
  • Google+
  • Pinterest



Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
