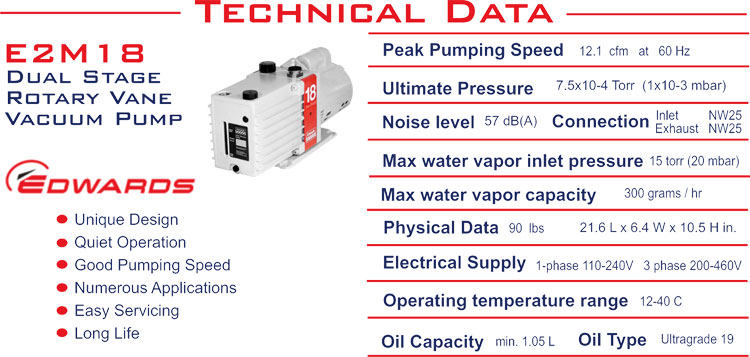

Edwards E2M18 12.1 CFM Dual-Stage Pump

$4,908.00

The Edwards E2M18 12.1 CFM Dual-Stage Pump offers an excellent ultimate pumping speed. The Edwards 18 E2M18 has superior vapor handling capabilities, while operating quietly. They are very reliable and have accessories to match any application. Applications Include use with Refrigeration dehydration, Brake line evacuation, Epoxy degassing, Sterilization, Mass spectrometry, Vacuum ovens, Lasers, Backing combinations, Thin film coating, Vacuum distillation, Freeze drying, Space research and other vacuum processes. The Edwards 18 E2M18 vacuum pumps have a pumping speed displacement at 60Hz of 12.1 CFM and an ultimate pressure of 7.5 X 10 -4 Torr.

SKU: A36315904 Categories: ,

Description

Edwards E2M18 12.1 CFM Dual-Stage Pump
The Edwards E2M18 12.1 CFM Dual-Stage Pump offers an excellent ultimate pumping speed. The Edwards 18 E2M18 has superior vapor handling capabilities, while operating quietly. They are very reliable and have accessories to match any application. Applications Include use with Refrigeration dehydration, Brake line evacuation, Epoxy degassing, Sterilization, Mass spectrometry, Vacuum ovens, Lasers, Backing combinations, Thin film coating, Vacuum distillation, Freeze drying, Space research and other vacuum processes. The Edwards 18 E2M18 vacuum pumps have a pumping speed displacement at 60Hz of 12.1 CFM and an ultimate pressure of 7.5 X 10 -4 Torr.

  • Facebook
  • Twitter
  • Google+
  • Pinterest



Overview

The EM range of oil-sealed rotary pumps – renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour – have become the industry standard for laboratory and light industrial applications.

The E2M18 pump is a two-stage, direct drive, sliding vane pump. The pump is oil sealed and designed for reliable, long-term operation. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single-phase or three-phase (four-pole) motor.

Supplied with: Ultragrade 19 oil, NW25 O-ring and centering ring.

  • Facebook
  • Twitter
  • Google+
  • Pinterest

Technology

This is a single stage oil sealed rotary vane pump which has a pressurised oil system that lubricates the pump shaft bearing surfaces and rotor sealing faces. The pump has an oil distribution valve which prevents discharge of oil to the pump interior (suckback) after the pump stops. The pumping chambers are air-tight, so this arrangement prevents oil suckback unless the gas ballast valve is open.

You can inspect the level and condition of oil in the oil box reservoir through the oil sight-glass. An oil filler-plug is fitted to the top of the oil box. The pump has an oil drain-plug to allow either gravity oil drain or pressure oil drain.

Applications

  • Analytical instruments – LCMS
  • Automotive
  • Beam lines and high energy physics
  • Centrifuges, ultra-high speed
  • Coating
  • Cryogenics
  • Degassing/curing – oil, epoxy resin
  • Distillation/extraction/filtration
  • Freeze drying
  • Furnaces
  • Gas bottle filling/emptying
  • Gel drying
  • Glove boxes, ovens
  • Laboratory bench top vacuum
  • Leak detectors, Helium
  • Load locks and transfer chambers
  • Refrigeration manufacture
  • Research and development
  • Rotary, centrifugal evaporators
  • Scanning electron microscopes – SEM
  • SEM/FIB (Ion beam repair)
  • Solvent recovery
  • Surface science instruments
  • Turbomolecular backing pumps
  • TV manufacturing / light bulb manufacture

Features and Benefits

  • The pump is designed for reliable, long-term operation.
  • Thermal overload device prevents overheating (single phase only).
  • The drive is provided through a flexible coupling by a single-phase or three-phase (four pole) motor.
  • The motors are totally enclosed and are cooled by the motor-cooling fan.
  • Pressure die cast oil box with integral oil seals prevents oil leaks.
  • Gas ballast valve for large water vapour handling capacity.
  • Externally approved to EN61010, CSA, C22.2 and UL61010.
  • Large O-ring sealed oil sight glass allows oil condition and level to be easily inspected.
